NOVA Elite10 (1000mm*700mm 100W Glass Tube)
Nova10 Elite is the newest CO2 laser engraving and cutting machine from AEON Laser. Elite Nova10 has a 700*1000mm working area, and scan speeds of up to 1200 mm/second. Nova Elite is the upgraded edition of the Nova series, and the Nova Elite10 uses a 100W CO2 glass tube. A faster machine means more capacity for your projects.
Overall Review
Nova Elite10 is a professional CO2 laser engraving and cutting machine. The working area is 700*1000mm Nova10 Elite’s engraving speed is faster than MIRA series machines. It engraves at up to 1200mm/sec with 5G acceleration, the fastest in its class. The structure of the Nova10 Elite is very strong, which keeps it steady. The Nova Elite10 comes with honeycomb and blade worktables and a model 5200 chiller, supporting the installed 100W laser tube. The Z-axis travel is now 200mm, so it fits taller items. The air assist system has a pressure gauge and regulator, so a more powerful compressor can be added to cut thicker materials. The front and back material pass-through door makes it possible to cut long materials.
Advantages of the Nova Elite10
Super Strong Fully Enclosed Machine Body
The Elite NOVA10 is built like a tank. The main frame is built from thick steel tube for strength, and the body is fully enclosed with seals on every door and window for added safety.
CleanPack Technology
One of the biggest enemies of laser engraving and cutting machines is dust. Smoke and dust particles slow the machine down and spoil the results. The CleanPack design of NOVA Elite10 protects the linear guide rail from dust, reduces maintenance and gives much better results.
All-in-one design
The Nova Elite10 has a built-in 330W Exhaust Fan, 5000 water chiller. The all-in-one design is beginner friendly and saves space.
Integrated Autofocus
(2”,2.5”,4” focus lens position)
Integrated Autofocus The newly designed laser head features an integrated autofocusing mechanism that is lightweight and a whole lot more accurate. Say goodbye to collisions and gouged material.
Convenient Scrap and Product Collecting System
All of your cut pieces now fall into a conveniently located compartment below, which can be easily emptied to prevent scrap pieces from piling up and becoming a fire hazard.
Electric Table and Front Pass-Through Door
The Nova Elite10 has a steady, precise ball-screw electric up-and-down table. The 200mm Z-axis fits items up to 200mm tall. The front door can open and pass through longer materials.
AEON NOVA Elite10 Material Applications
| Laser Cutting | Laser Engraving |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
|
| Elite10 | |
| Working Area | 1000*700mm（39 3/8″ x 27 9/16″) |
| Machine Size | 1500*1210*1025mm (59 1/16″ x 47 41/64″ x 40 23/64″) |
| Machine Weight | 1000 lb (450kg) |
| Work Table | Honeycomb + Blade |
| Laser power | 80W/100W CO2 Glass Tube |
| Electric Up&Down | 200mm (7 7/8″) Adjustable |
| Air Assist | 105W Built-In Air Pump |
| Blower | Elite10 330W Built-In Exhaust Fan, Elite14,16 550W Built in Exhaust Fan |
| Cooling | Elite10 Built-in 5000 Water Chiller, Elite14,16 Built-in 5200 Chiller |
| Input Voltage | 220V AC 50Hz/110V AC 60Hz |
| Engraving Speed | 1200mm/s |
| Cutting Thickness | 0-30mm (depends on material) |
| Max Acceleration Speed | 5G |
| Laser Optical Control | 0-100% Set by software |
| Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Character) |
| Locating Precision | <=0.01 |
| Red Dot Positioning | Yes |
| Built-in WIFI | Optional |
| Auto Focus | Integrated Autofocus |
| Engraving Software | RDWorks/LightBurn |
| Graphic Format Supported | AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LBRN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA |
| Compatible Software | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software |

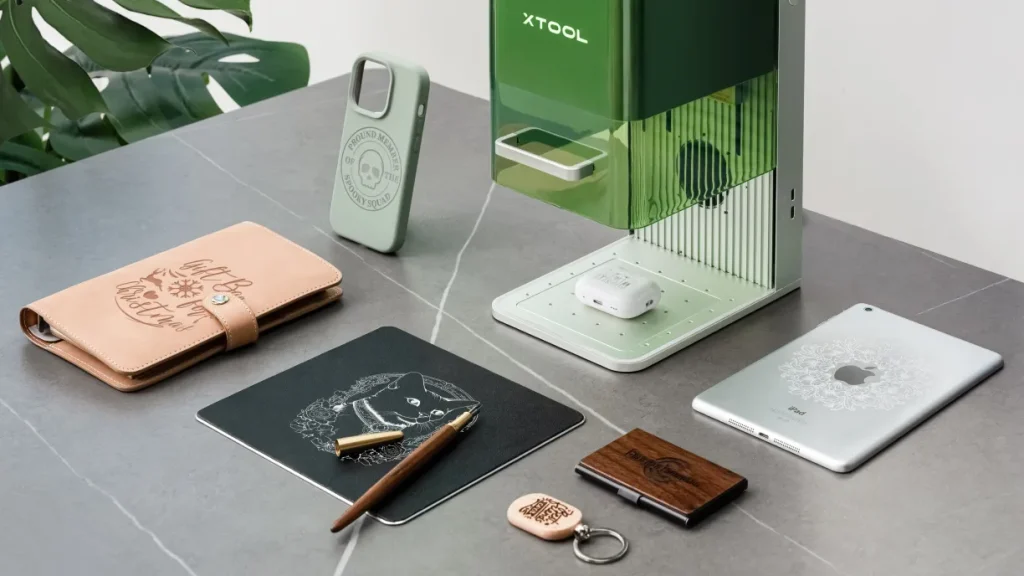

The portable xTool F1 Laser for Engraving or Cutting

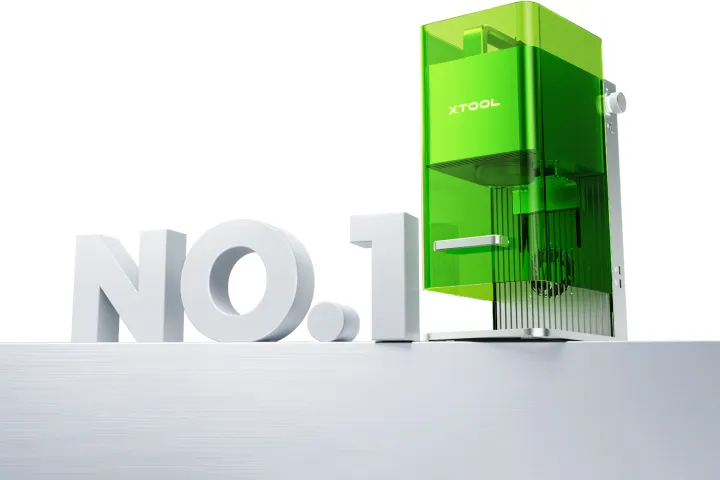

No. 1 Portable Laser
No. 1 selling portable desktop laser on Amazon, based on GMS sales history.
Top-Rated by Leading Media
The xTool F1 is the best portable laser engraver right now, perfect for trade shows.
Renowned Honor & Industry Awards
xTool F1 won the IF Design Award in 2024, standing out with its innovative design and exceptional performance.
Mark What You Want, Like Magic!
300+ Materials Supported
Give Daily Items a Unique Touch
4000mm/s Engraving
All Your Ideas, Made Real Instantly
Over 6 times faster than common lasers, your custom items can be engraved in just 10 seconds at best. Feel the joy of engraving in no time!
As light as a small dumbbell, weighing around 4.6kg for effortless lifting and easy portability.
Grab and Go, It's Part of Your Everyday
All Around
You, Make It
Yours
Like a Camera, Save Your Moments
into lasting memories with HD engraving,
capturing every detail for a true ‘what-you-see-is-what-you-get’ experience.
Like a Printer, but Prints on More
materials—wood, leather, stone, and
beyond. Each material tells your story and
showcases your style.
Take It to the Show, Make Some Extra
both home creativity and craft fairs—it’s the
ideal place to seize business
opportunities and earn money.
Make Unique Cards for Your Big Day
easier. Create stunning cards for
weddings, birthdays, anniversaries,
Christmas, and more.
Specifications
Processing Capacity
Laser Type
Supported Materials
Processing Mode
Working Area
Max. Working Speed
Max. Laser Cutting Capacity
(Basswood)
Max. Laser Cutting Capacity (Acrylic)
Max. Processing Height
Max. Rotary Engraving Diameter
10W Diode Laser + 2W 1064nm Infrared Laser
Laser Cuttable:
10W Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic.
Laser Engravable:
10W Diode Laser: Paper, Wood, Leather, Coated Metal, Some Dark Opaque Acrylic, etc.
2W Infrared Laser: Plastic, Gold, Silver, Platinum, Stainless Steel, etc.
Laser Engraving
Laser Cutting
4.53″ × 4.53″(115mm × 115mm)
15.75″ × 4.53″(400mm × 115mm) with Extension
157.48 ips (4000mm/s)
0.32″ (8mm) in Multiple Pass
0.24″ (6mm) in Multiple Pass
4.45″ (113mm)
4.45″ (113mm)

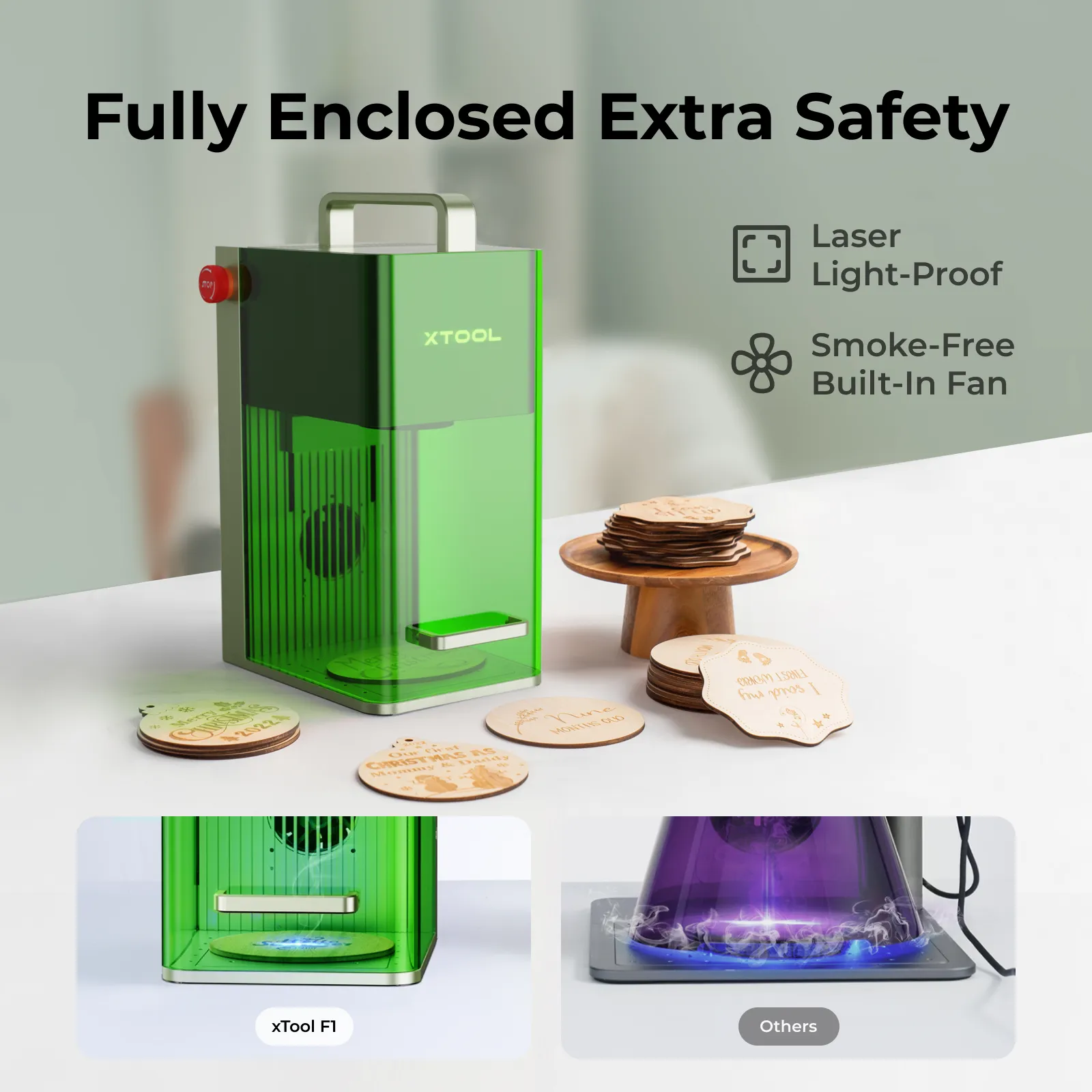

Easy to Use, Safe to Create
Our newest addition

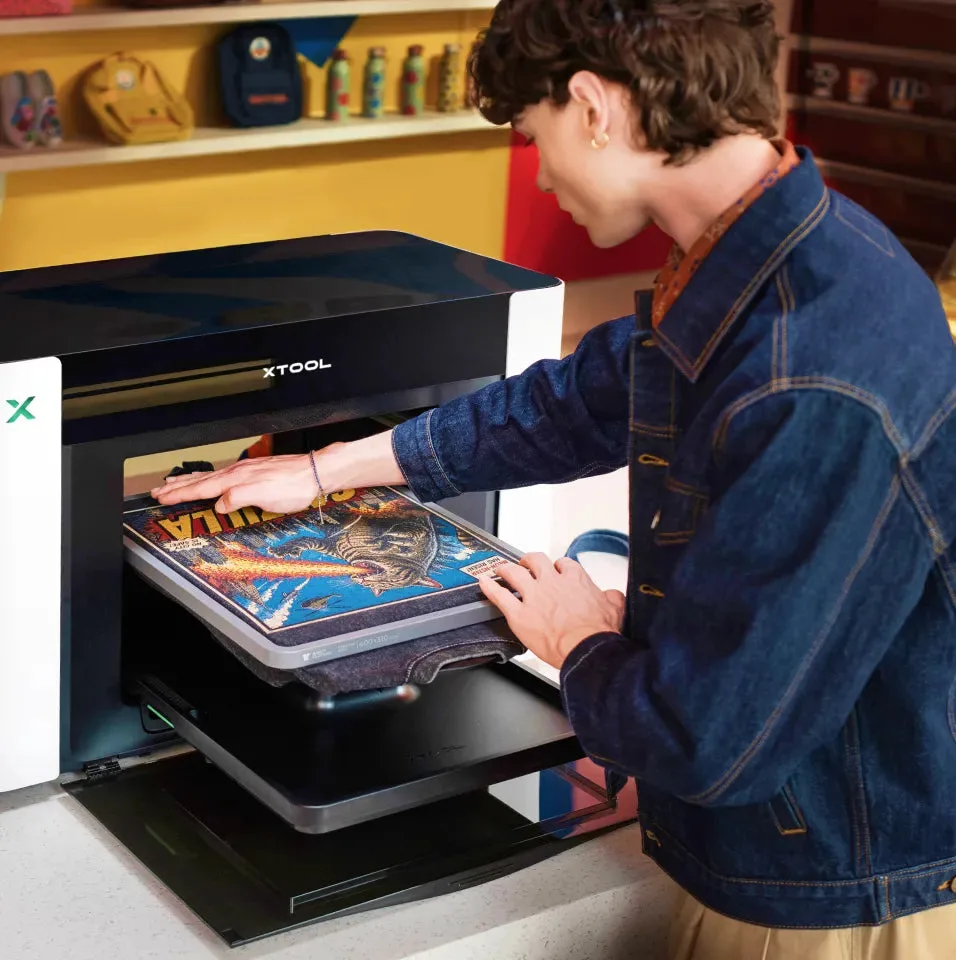

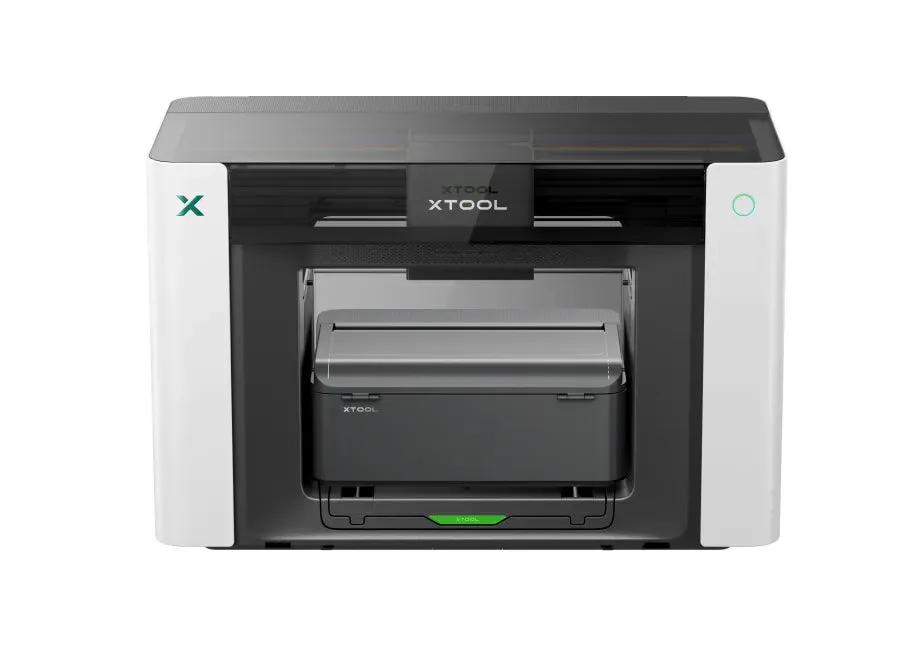

xTool O1 Omni Printer
The world’s first 4-in-1 Omni printer
The xTool O1 brings full-color printing into our Lavon workshop. It handles UV printing on hard items, direct-to-garment and direct-to-film printing on fabric, and UV DTF transfers — so alongside our laser engraving we can now add vivid, detailed color to acrylic, wood, metal, glass, ceramic, leather and apparel.
That means crisp full-color photos, raised textured prints you can feel, and personalized gifts that combine engraving and color in one piece.
What it can do
Key features
Four ways to print
Pixel-Scan™ vision
1:1 3D cup replication
G7 certified color
Raised texture printing
Safer inks & clean air
Print samples
What the O1 can make
Full-color prints on fabric and paper

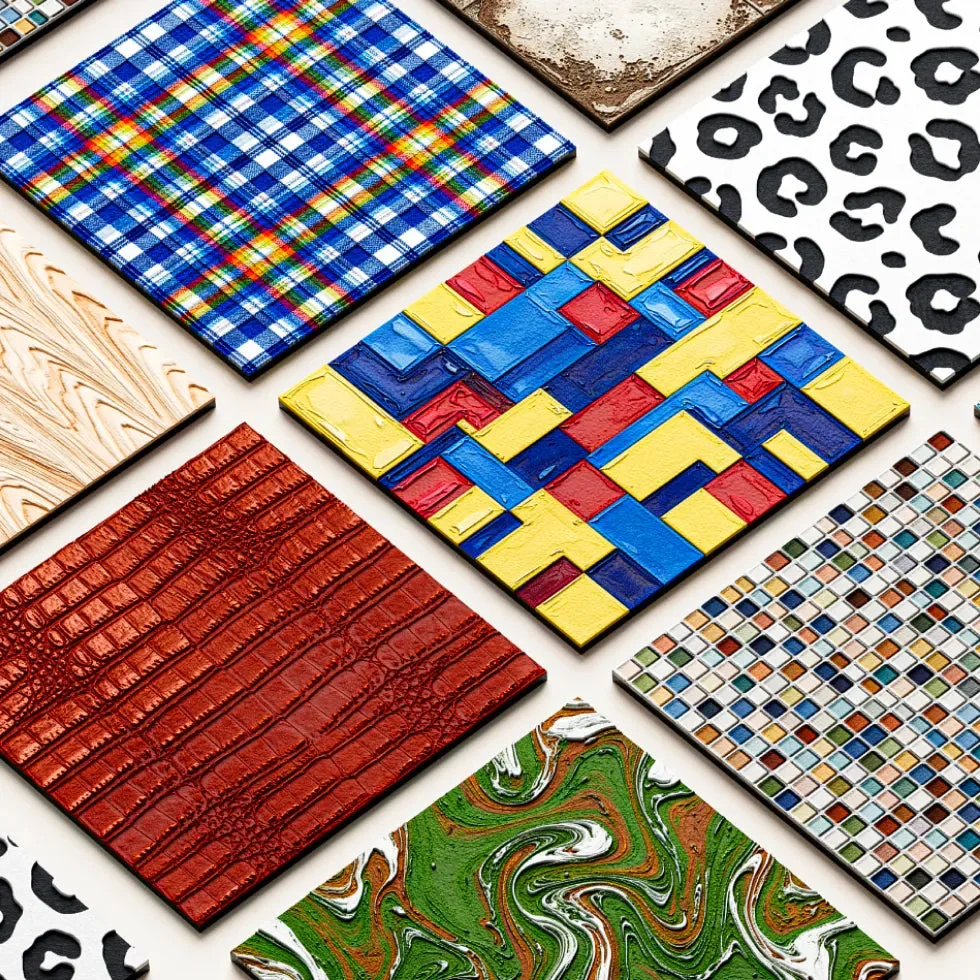

Raised, textured coasters

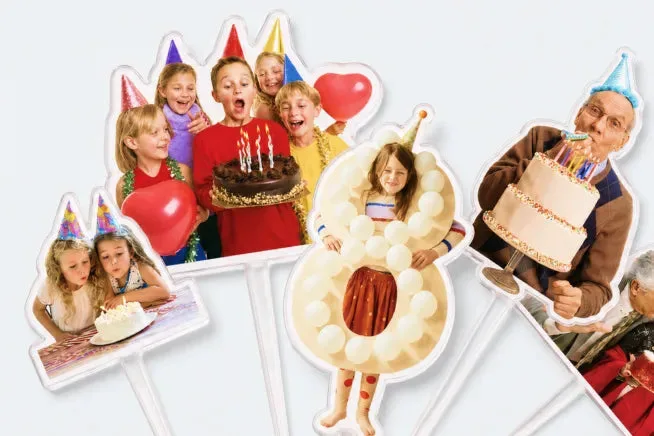

Personalized photo treats and toppers

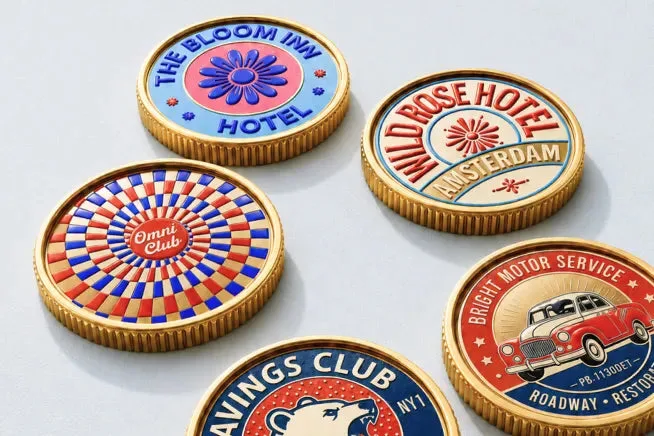

Full-color printed coasters
Fine color detail
Easy-access print bed
By the numbers
Specifications
| Printing | UV printing on rigid items, DTG and DTF fabric printing, and UV DTF transfers |
|---|---|
| Printheads | Epson F1080 (one or two depending on edition) |
| Print resolution | 720 × 1440 dpi |
| Vision system | 1440 × 1200 dpi, ±0.2 mm positioning accuracy |
| Print area | Standard bed 13 × 4.8 in (330 × 122 mm); large bed 13 × 16.5 in (330 × 420 mm); DTG platen 11.8 × 15.4 in (300 × 390 mm) |
| Embossed print height | Up to 7 mm (0.28 in) |
| Smallest text | 1 mm (0.04 in) |
| Materials | Acrylic, wood, metal, glass, ceramic, leather, canvas, cotton, polyester and more |
| Inks | GREENGUARD Gold certified UV ink; OEKO-TEX certified fabric ink |
| Air filtration | HEPA and activated-carbon filters |
| Machine size | 28.1 × 14.7 × 18.4 in (714 × 374 × 468.5 mm), about 90 lb |
| Software | xTool Studio for Mac and Windows |
